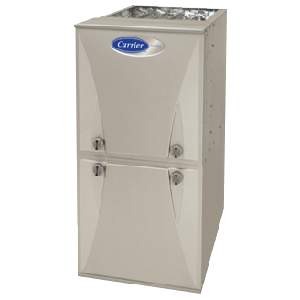

59TP5A Performance 96
Supported by the Performance Edge thermostat and a multi-speed blower motor, this furnace will run in low stage up to 90% of the time. Longer, low-stage run times give you better energy efficiency, better temperature control and increased comfort. It also assures you quieter performance.
- Up to 96.7% AFUE heating efficiency
- Two-stages of heat for economical operation
- Multi-speed, high-efficiency, ECM blower motor enhances comfort
- Comfort Heat Technology feature intelligently stages heating cycles to reduce temperature swings and improve efficiency
- Fully insulated cabinet
- Advanced temperature control
- Includes air filter cabinet
| MODEL | Configuration | Input MBtuH | Output MBtuH | AFUE | CFM | Dimensions HxWxD | Weight Lbs. |
|---|---|---|---|---|---|---|---|
| 59TP5A040E14--10 | 40.0 | 39.0 | 96.5 | 590 | 35x30x14.2 | 0 | |
| 59TP5A040E17--12 | 40.0 | 39.0 | 96.0 | 580 | 35x30x17.5 | 0 | |
| 59TP5A060E14--12 | 60.0 | 58.0 | 95.0 | 775 | 35x30x14.2 | 0 | |
| 59TP5A060E17--14 | 60.0 | 58.0 | 96.3 | 785 | 35x30x17.5 | 0 | |
| 59TP5A080E17--16 | 80.0 | 78.0 | 96.2 | 1095 | 35x30x17.5 | 0 | |
| 59TP5A080E21--20 | 80.0 | 78.0 | 96.7 | 1055 | 35x30x21 | 0 | |
| 59TP5A100E21--20 | 100.0 | 97.0 | 96.1 | 1325 | 35x30x21 | 0 | |
| 59TP5A120E24--22 | 120.0 | 117.0 | 96.7 | 1610 | 35x30x24 | 0 |
Warranty Information
- All Parts for 120 months -
- Heat Exchanger -
Available Documents
- View Document (Consumer Literature, Customer Information, Color)
- View Document (Owners Manual, Customer Information)
- View Document (Quick Start Guide, In the Box)
