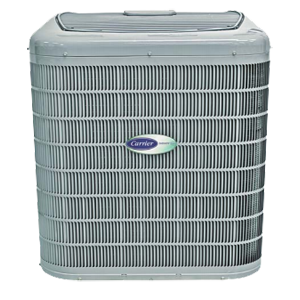

25VNA Infinity Variable Speed Heat Pump
Carriers 25VNA with Greenspeed Intelligence is a breakthrough product providing up to 13 HSPF heating efficiency and up to 20.5 SEER cooling efficiency. The variable speed capacity control results in strong heating capacity as the outdoor temperature drops resulting in less reliance on auxiliary heat. Lower speed operation, when needed in cooling, for enhanced comfort and dehumidification.
- Microtube Technology refrigeration system
- Variable speed compressor with capacity range from 40 -100%
- Air cooled Inverter variable speed drive
- Puron refrigerant - environmentally sound, won’t deplete the ozone layer a
- Greenspeed Intelligence actively monitors critical system parameters
- High pressure switch
- Suction pressure transducer
- Electronic expansion valve (EXV) for heating, TXV for cooling
- Filter drier (field installed)
- Internal crankcase heater standard
- Minimum and Maximum airflow adjustments
- Compressor Heating RPM control
- Hybrid Heat dual fuel capable
- Solid, Durable sheet metal construction
- Steel louver coil guard
- Baked-on, complete outer coverage, powder paint
MODEL | Cooling Cap. MBtuH | SEER | Heating Cap.MBtuH | HSPF | Refrigerant Charge Oz. | Line Size | Dimensions HxWxD | Weight Lbs. |
---|---|---|---|---|---|---|---|---|
25VNA036 | 35.0 | 20.5 | 33.4 | 13.0 | 210 | 3/8 - 7/8 | 324 | |
25VNA024 | 25.2 | 20.5 | 23.6 | 13.0 | 210 | 3/8 - 7/8 | 324 | |
25VNA048 | 47.5 | 18.3 | 45.5 | 12.5 | 213 | 3/8 - 1-1/8 | 334 | |
25VNA060 | 56.0 | 18.0 | 55.5 | 12.0 | 213 | 3/8 - 1-1/8 | 334 |
Warranty Information
- All Parts for 120 months -
Available Documents
- View Document (Consumer Literature, Customer Information, Color)
- View Document (Installation & Operation, In the Box)
