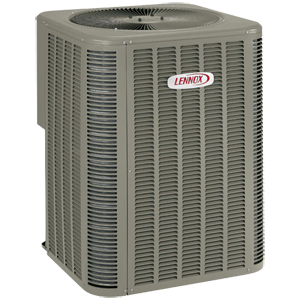

Lennox 13ACX Air Conditioners

Economical, environmentally responsible home cooling

  • Environmentally sound R-410A refrigerant
  • Scroll compressor with crankcase heater and sound cover
  • Copper tube construction with enhanced ripple-edged aluminum fins
  • Direct drive outdoor fan motor
  • Factory installed liquid line drier
  • Outdoor unit expansion valve
  • Controls:
    • High pressure switch
    • Loss of charge switch
  • High gloss, baked-on powder coat finish over galvanized steel
  • SmartHinge louvered coil protection

Single Stage Air Conditioner

r410a Lennox Logo
Model IDModel NameNominal
Tonage
Sound
DB
MCAMax. Fuse
Size
R410A Charge
Lbs- Oz
Line
Size
HxWxDWeight
2965113ACX-0181.57411.9203 - 133/8 - 3/427x27x28150
2965213ACX-0242.07417.5304 - 063/8 - 3/427x27x28150
2965313ACX-0302.57618.7304 - 043/8 - 3/431x27x28161
2965413ACX-0363.07624.4405 - 093/8 - 7/831x27x28164
2965513ACX-0423.57624.1406 - 093/8 - 7/831x30.5x35240
2965613ACX-0484.07628.9507 - 083/8 - 7/839x30.5x35240
2965713ACX-0605.07634.66010 - 003/8 - 1-1/835x30.5x35259
  • Limited Lifetime Warranty on Heat Exchanger in Residential Settings
  • All Other Parts - Five Years
